Balanced Long-Stroke Tie-Rod Hydraulic Cylinder

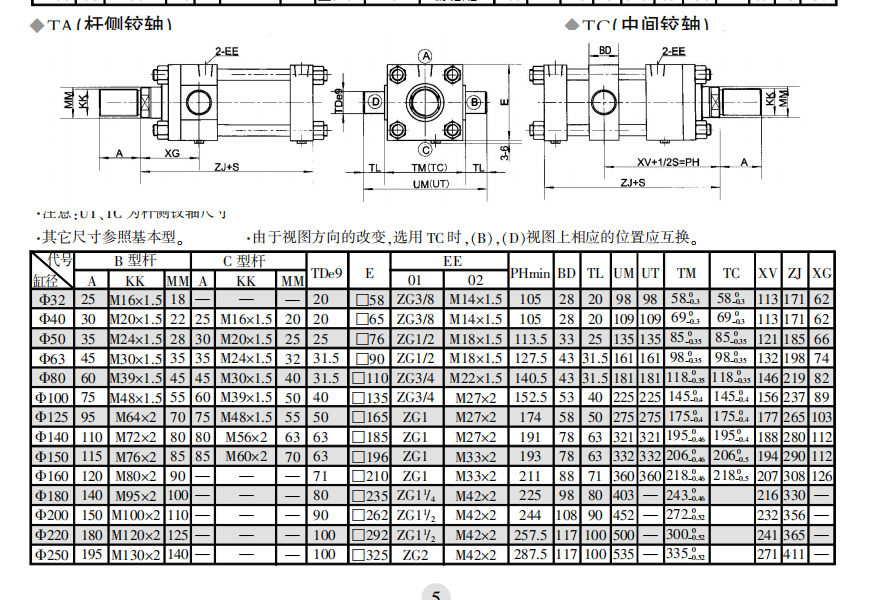

Engineered for long-stroke operations and applications requiring extreme thrust stability, the YX01LG-01-140L-TC provides a highly scientific force-balancing solution. Instead of conventional end-cap fixing, it mounts a robust TC middle trunnion directly around the middle of the cylinder barrel. This advanced mechanical layout shifts the primary support point directly to the system's center of gravity. When the piston rod extends over an extended distance, the downward cantilever deflection (sagging effect) caused by gravity or external loads is neutralized by the trunnion structure. This effectively eliminates localized wear on the guide bush and prevent scoring of the rod. The interior features a domestic high-grade seamless steel tube, precision honed and roller burnished to achieve an ultra-smooth internal finish, consistently maintaining a total energy conversion efficiency of above 90%.

CONTACT US Balanced Long-Stroke Tie-Rod Hydraulic Cylinder
  • Balanced Long-Stroke Tie-Rod Hydraulic Cylinder

Product Features

Core Advantages:

Optimized Center-of-Gravity Dynamics: The center trunnion orientation drastically reduces the external torque required when tilting the cylinder, softening the harsh structural tearing and impact loads transmitted to the host chassis during directional changes.

Lossless Power Transmission: The combination of low-friction internal walls and dynamic sealing rings minimizes parasitic power losses caused by oil heat generation and mechanical friction, translating raw hydraulic energy into precise linear force.

Flexible Modular Customization: Backed by an advanced modular architecture, while maintaining standard baseline specs, the bore size can vary from Φ32 to Φ250, and the stroke length can be tailored to any precise length requested.

Typical Applications: Heavy-duty gantry crane grabs, long-distance bulk belt conveyor tensioning systems, metallurgical smelting furnace tilting platforms, and high-inclination mining loaders.
