Industrial Automation High-Frequency Tie-Rod Hydraulic Cylinder

The YX01LG-01-140L-LA is a highly compact, double-acting single-rod tie-rod hydraulic cylinder specifically engineered for modern light industries and advanced automated assembly lines. The defining mechanical characteristic of this model is its unique LA foot mounting configuration. This low-profile, downward-extending base bracket shifts the center of gravity to its lowest point, allowing the axial reaction force generated during operation to be distributed directly and evenly into the machine's primary rigid frame. It exhibits exceptional vibration resistance and anti-deflection stability when subjected to high-frequency, high-acceleration reciprocating impacts. To overcome the limitations of conventional bulky hydraulic cylinders, this series maintains a solid 14MPa pressure rating while incorporating lightweight premium materials and optimized internal fluid ports, making it the perfect compact powerhouse for space-constrained, high-speed automated equipment.

CONTACT US Industrial Automation High-Frequency Tie-Rod Hydraulic Cylinder
  • Industrial Automation High-Frequency Tie-Rod Hydraulic Cylinder

Product Features

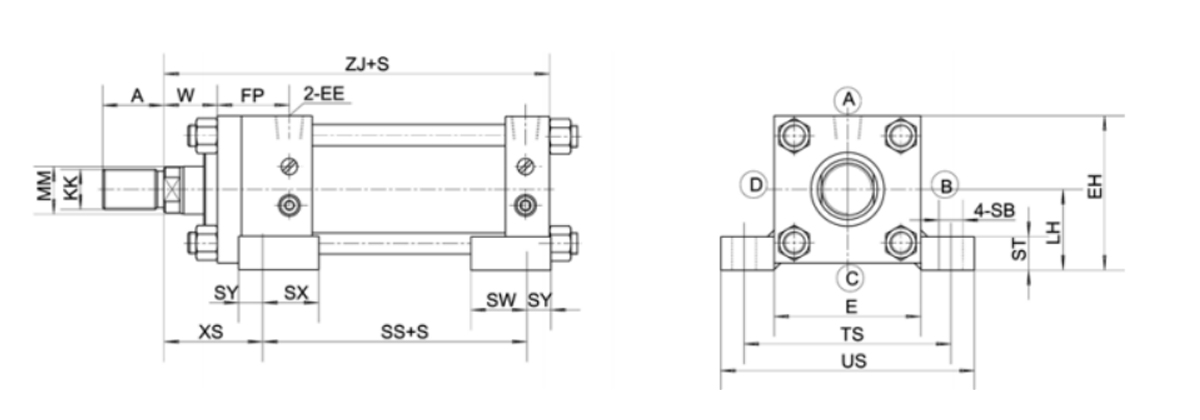

Bore Diameter B-type Rod C-type Rod E EE FP EH LH SB ST SS SX SW SY TS US W ZJ XS
A KK MM A KK MM 1 2
Φ32 25 M16×1.5 18 — — — □58 ZG3/8 M14×1.5 36 63 35±0.15 11 12 98 31 31 13 88 109 30 171 57
Φ40 30 M20×1.5 22 25 M16×1.5 20 □65 ZG3/8 M14×1.5 37 70 37.5±0.15 11 14 98 31 31 13 95 118 30 171 57
Φ50 35 M24×1.5 28 30 M20×1.5 25 □76 ZG1/2 M18×1.5 42 82.5 45±0.15 14 17 106 34 34 14 115 145 30 185 60
Φ63 45 M30×1.5 35 35 M24×1.5 32 □90 ZG1/2 M18×1.5 40 95 50±0.15 18 19 106 32 32 18 132 165 35 198 71
Φ80 60 M39×1.5 45 45 M30×1.5 40 □110 ZG3/4 M22×1.5 53 115 60±0.25 18 25 124 42 42 18 155 190 35 219 74
Φ100 75 M48×1.5 55 60 M39×1.5 50 □135 ZG3/4 M27×2 49 138.5 71±0.25 22 27 122 38 38 22 190 230 40 232 85
Φ125 95 M64×2 70 75 M48×1.5 55 □165 ZG1 M27×2 65 167.5 85±0.25 26 32 136 41 41 25 224 272 45 265 99
Φ140 110 M72×2 80 80 M56×2 63 □185 ZG1 M27×2 67 187.5 95±0.25 26 35 144 41 41 25 250 300 50 280 106
Φ150 115 M76×2 85 85 M60×2 70 □196 ZG1 M33×2 68 204 106±0.25 30 37 146 38 38 28 270 320 50 290 111
Φ160 120 M80×2 90 — — — □210 ZG1 M33×2 74 217 112±0.25 33 42 150 40 40 31 285 345 55 308 122
Φ180 140 M95×2 100 — — — □235 ZG1¼ M42×2 75 242.5 125±0.25 33 47 172 50 36 35 315 375 55 330 123
Φ200 150 M100×2 110 — — — □262 ZG1½ M42×2 84 271 140±0.25 36 52 186 56 40 39 355 425 55 356 131
Φ220 180 M120×2 125 — — — □292 ZG1½ M42×2 89 296 150±0.25 42 52 186 56 40 39 395 475 60 365 140
Φ250 195 M130×2 140 — — — □325 ZG2 M42×2 106 332.5 170±0.25 45 57 206 68 48 47 425 515 65 411 158

Core Advantages:

Instantaneous Low-Pressure Response: Engineered with ultra-low-friction seal groups, the minimum breakaway pressure is successfully restricted below 0.3MPa. It achieves near-zero latency in automated control circuits, with an overall mechanical efficiency exceeding 90%.

Broad Media Compatibility: The sophisticated sealing matrix is fully compatible with mineral oils, water glycol, high-water-based fire-resistant fluids, and phosphate esters, ensuring long-term material integrity across a broad thermal range of -5°C to +80°C.

Standardized Rapid Disassembly: Featuring the proven industrial standard four-tie-rod external clamping structure, routine maintenance or seal replacements can be executed rapidly with standard tools, minimizing costly production line downtime.

Typical Applications: High-speed textile winding mechanisms, plastic injection molding auxiliary actuators, industrial robotic XY-axis drives, and precision packaging automated conveyor systems.
